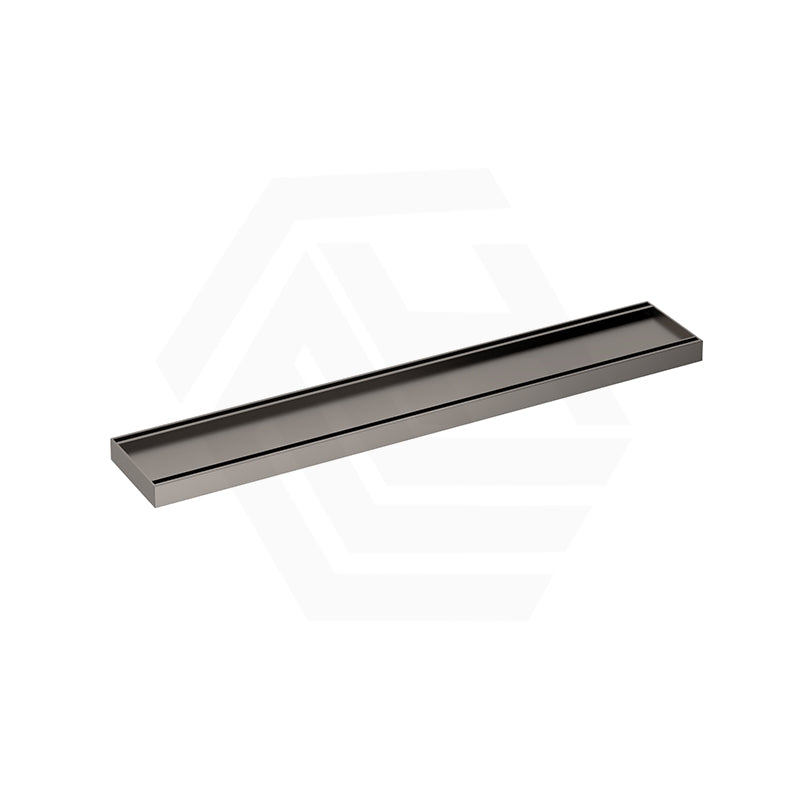

300-2000x100x21mm Lauxes Aluminium Brushed Nickel Slimline Tile Insert Shower Pool Drain

Lauxes  |  SKU: BNSTI21-03+BNEC21-100
$87.00
Pick Up Usually Ready in ~1-5 Days, Check Stock via Online Chat
*This item is NON-REFUNDABLE.*

00 DAYS : 00 HOURS : 00 MINS : 00 SECS


Lauxes Shower Grates are carefully designed and manufactured from triple anodised aluminium to create a robust, cost effective and versatile drainage solution for any indoor and outdoor wet area. With Lauxes Shower Grates there is no compromise on functionality or style when creating designer living spaces.

The world’s thinnest tile insert grate, the Slimline Tile Insert 21 is perfect for builds and renovations with height requirements making it easier to achieve your falls. All of grates are UV Stable. Made from anodised aluminium and backed by a Lifetime Rustproof Warranty, these grates are ideal for indoor and outdoor projects, offering a practical and customisable drainage solution.

Specifications:

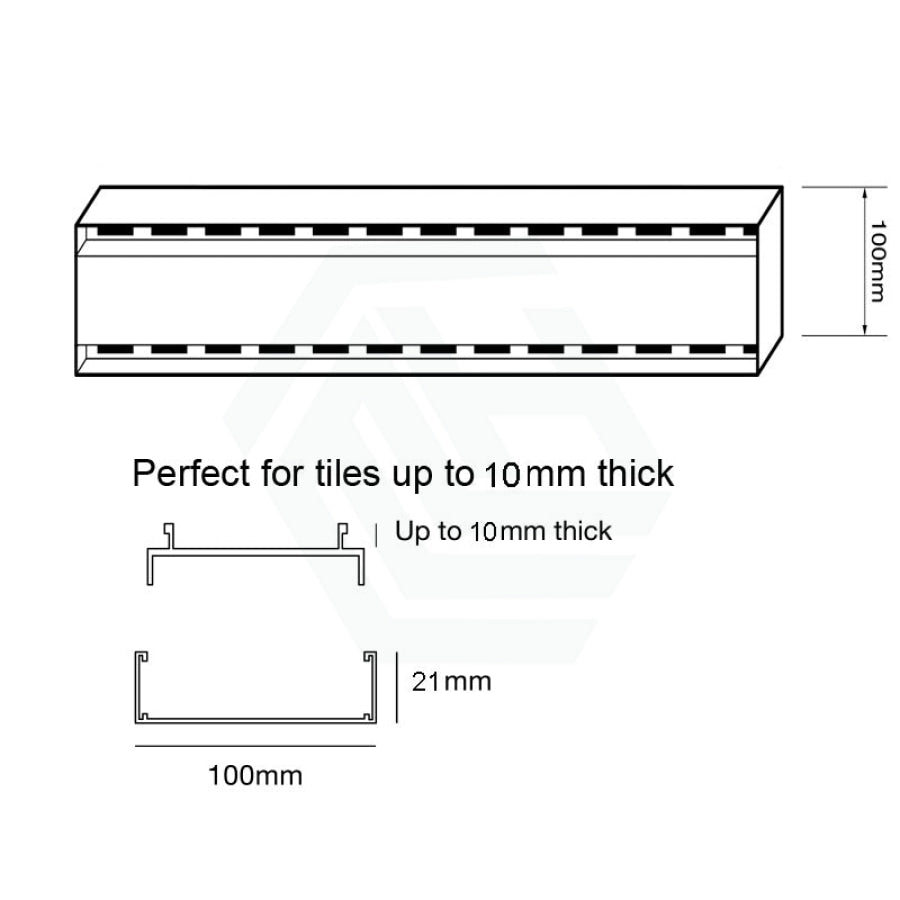

  • Size (mm): (300-2000)L x 100W x 21H

  • 2 Waste Sizes: 72/80mm

  • Color: Brushed Nickel

  • Rust proof

  • Lightweight

  • UV stable

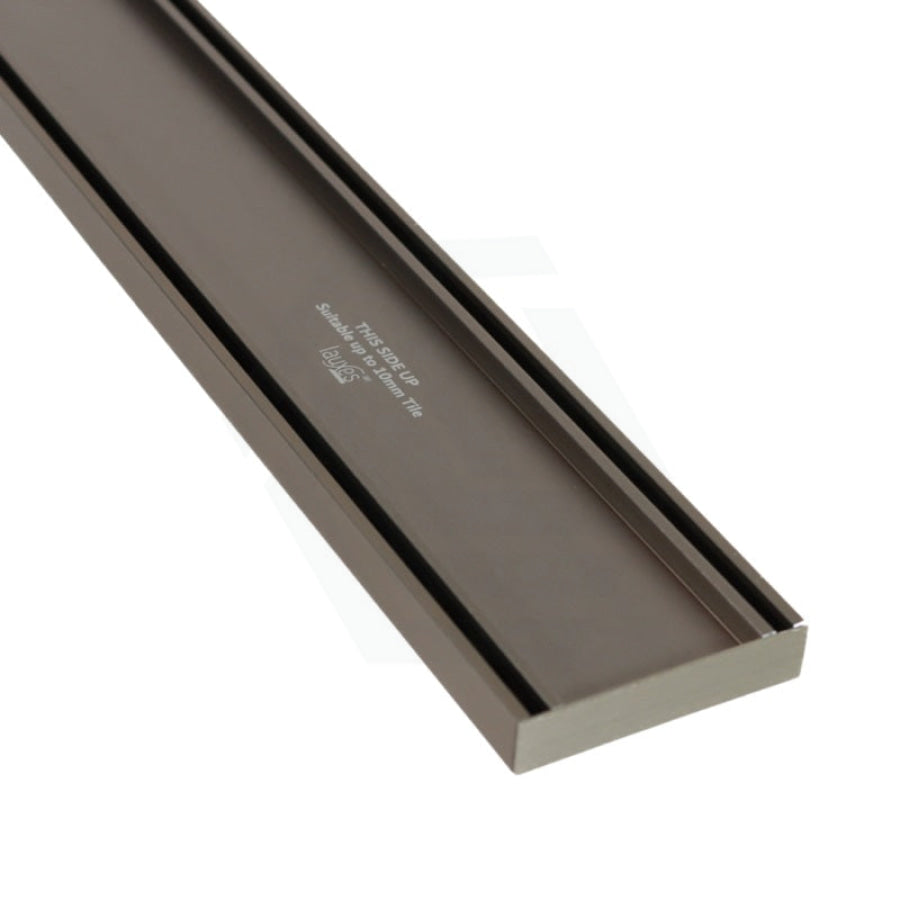

  • Takes tiles up to 10mm thick

  • Top grate easily removed for cleaning

  • Different colour choices to suit application

  • Easy to cut for desired length

  • Easy to clean (easy to roll out system)

  • Perfect use for indoor/outdoor applications

  • No welding required

  • No major plumbing involved as waste can be positioned anywhere along the bottom tray

  • Lifetime: Rustproof Warranty

  • Package Contents:

  • 1 x Shower grate

  • 1 x Waste

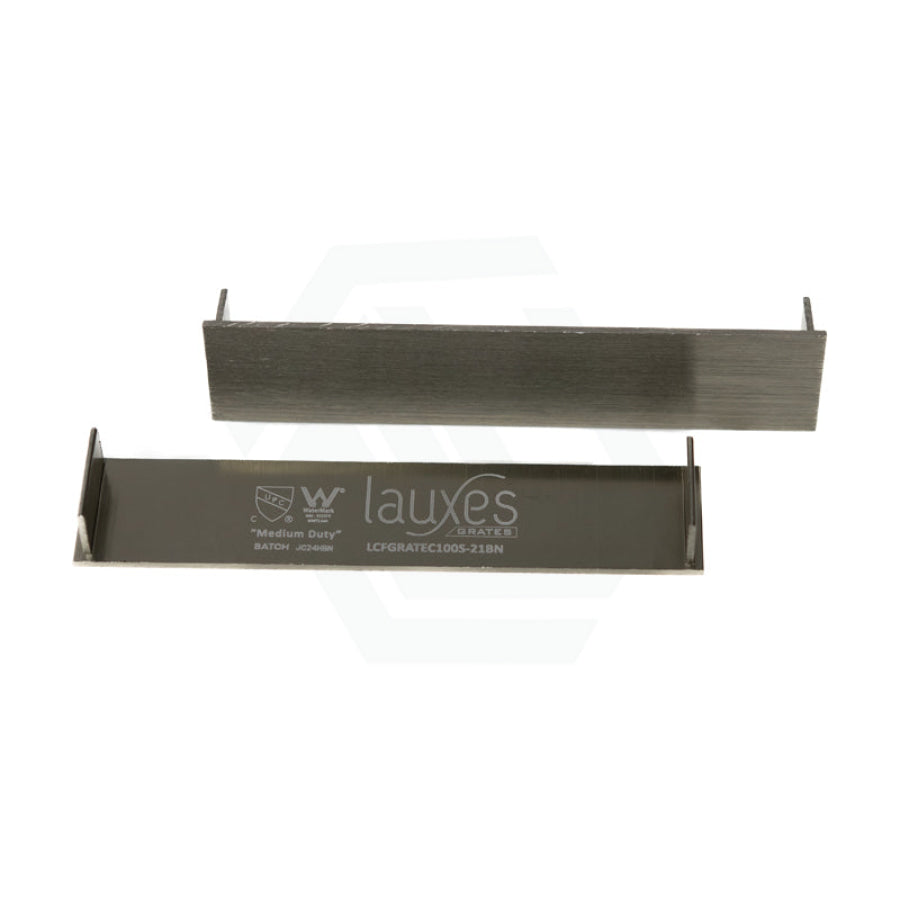

  • 1 pair of end cap

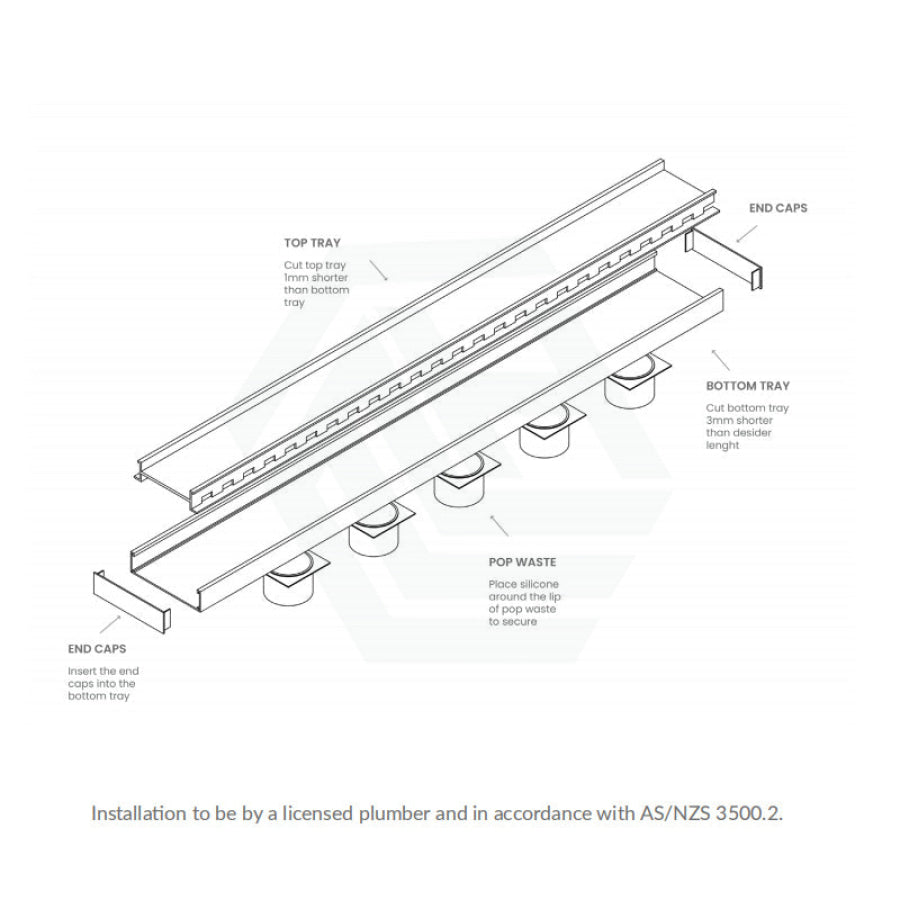

Cutting & Assembly Instructions:

For easy cutting of shower grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.

  • 1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted

  • 2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit

  • 3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor

  • 4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray

  • 5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole
