Kohler Framed In-Wall Cistern and Carrier System for Veil Intelligent Toilet Pans

Kohler  |  SKU: KH-18647A-NA
$1,252.00
Pick Up Usually Ready in ~1-5 Days, Check Stock via Online Chat

00 DAYS : 00 HOURS : 00 MINS : 00 SECS

Designed with a large, easy-access actuator plate opening, the insulated cistern is completely concealed within the wall and provides economical water savings with 0.8/1.6 gallon dual flushing.

FEATURES

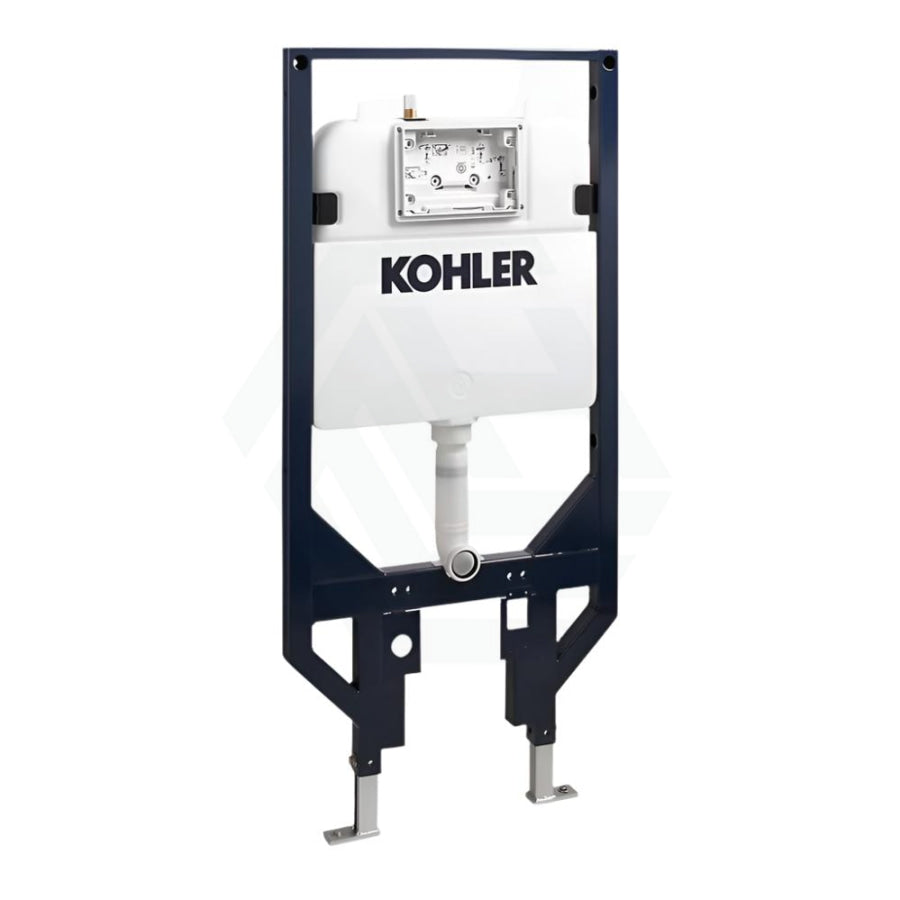

  • Robust steel tube frame.
  • Insulated tank to prevent sweating.
  • Large flush actuator plate opening can be removed for easy access to the inner cistern.

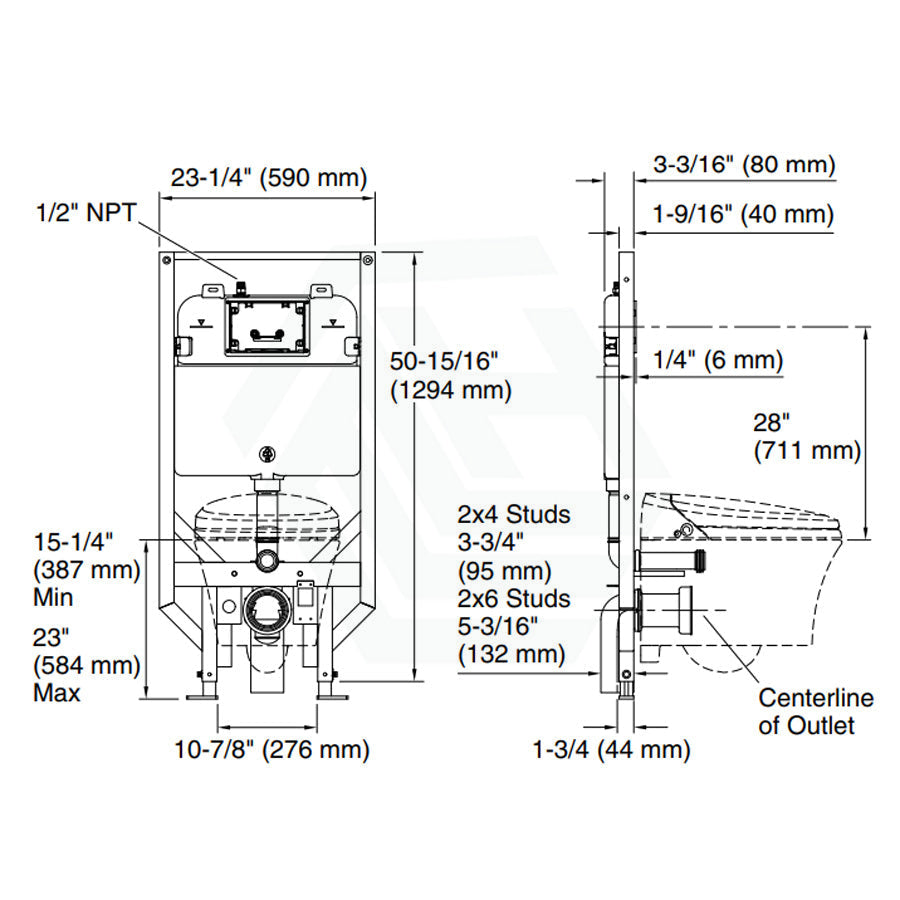

  • Adjustable height allows the bowl to be set anywhere from 15" to 23" from floor.
  • Dual-flush actuator offers a choice of 0.8 or 1.6 gallons per flush (gpf).
  • Requires KH-76395A-NA / KH-20313A-0 Veil Intelligent toilet (sold separately).

Technology

  • Dual-flush technology allows you to choose between a full- or partial-flush.

Installation

  • Durable steel frame carrier is installed on either 2"x4" or 2"x6" studs behind the wall. See installation guide for more detailed information.
  • When installed per KOHLER's installation instructions, the KOHLER in-wall tank and carrier system can support up to 880 lbs. without damage.
  • Supply line not included.

Water Conservation & Rebates

  • Complete Veil Intelligent toilet system meets WaterSense requirements.
  • WaterSense toilets meet strict EPA flushing guidelines, including using at least 20 percent less water than 1.6-gallon toilets.
  • Eligible for consumer rebates in some municipalities.

Installation Guide
